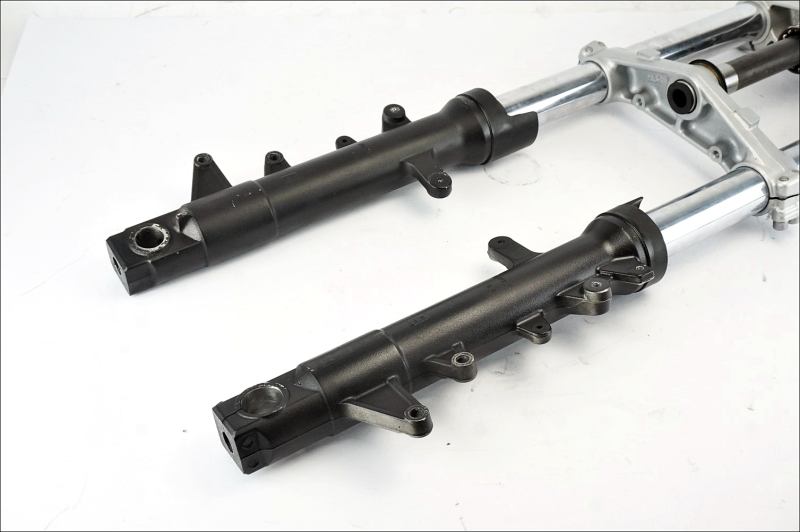

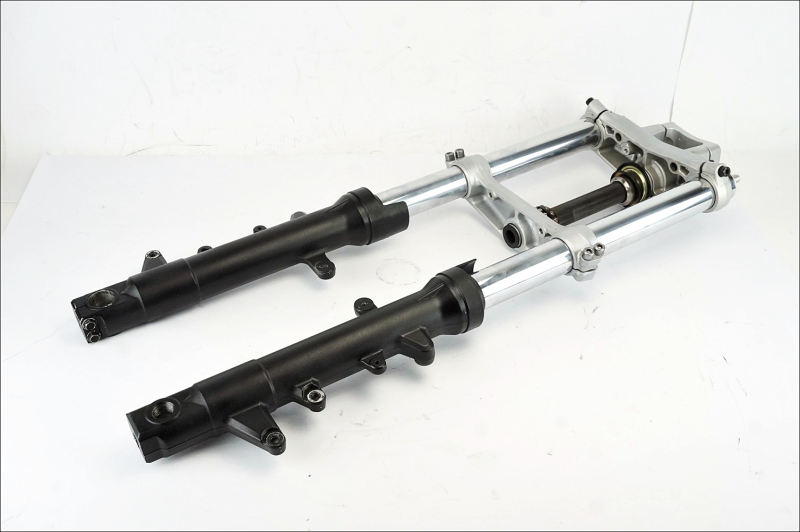

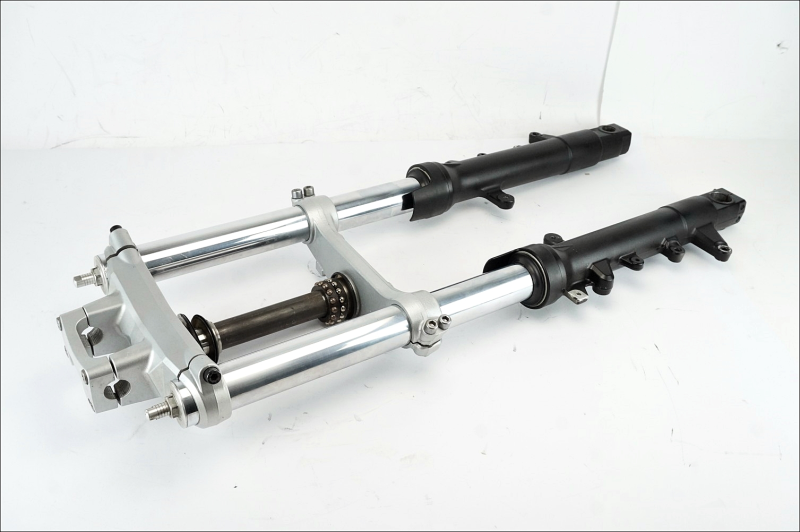

Suzuki GSR 600 06 11 Fork with original triple clamps

Vehicle Data Sheet
________________________________________
• TYPE: Naked
• BRAND: Suzuki
• MODEL: GSR 600
• DISPLACEMENT: 599 cc
• YEAR OF 1ST REGISTRATION: 2006
• APPLICATION: 2006-2011
• CHASSIS CODE: JS1B9111100109189
• ENGINE CODE: N730
• KM: 27,231 km recorded by the instrumentation installed on the vehicle during disassembly
• KW: 72 kW

Product Data Sheet
________________________________________
• CONDITION: Used
_____________
• DEFECTS TO REPORT: Signs of wear
• SPECIAL CONDITIONS: None
• BRAND: Original
• MATERIAL: Steel and Aluminum
________________________________________
Overall length: 78cm
Diameter of the riser mounting holes: 22mm
Steer tube length: 20cm
Steer tube diameter: 30mm
Inner tube diameter: 43mm
Diameter of the axial caliper mounting holes: 8mm
Distance between the axial caliper mounting holes from center hole to center hole: 6.2cm
Diameter of the front fender mounting holes: 5mm

Left fork tube code: XB771L 52
Right fork tube code: XB771R 3 6

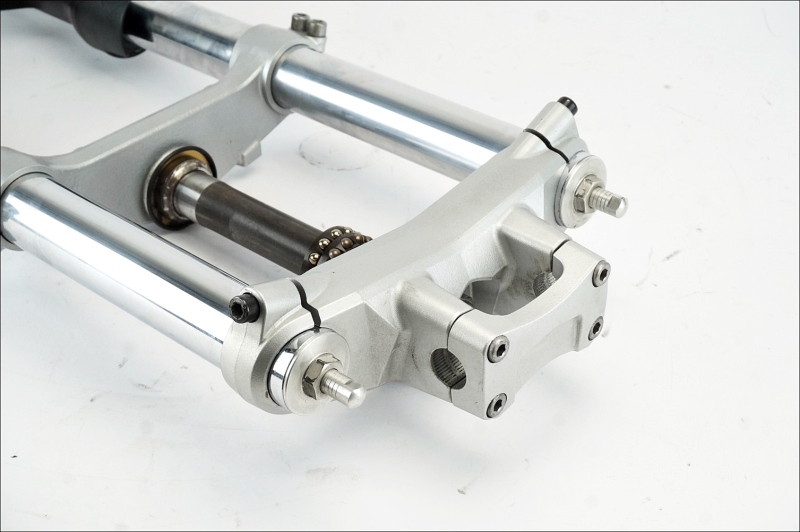

Upper triple clamp code: SXB771
Lower triple clamp code: 65

Product intact and straight with signs of use.
________________________________________
N.B.
HARDWARE AND FIXTURES NOT INCLUDED UNLESS VISIBLE IN PHOTOS
All item codes are visible in the photos.
We do not use sample images; what is visible in the photos reflects the actual item.
