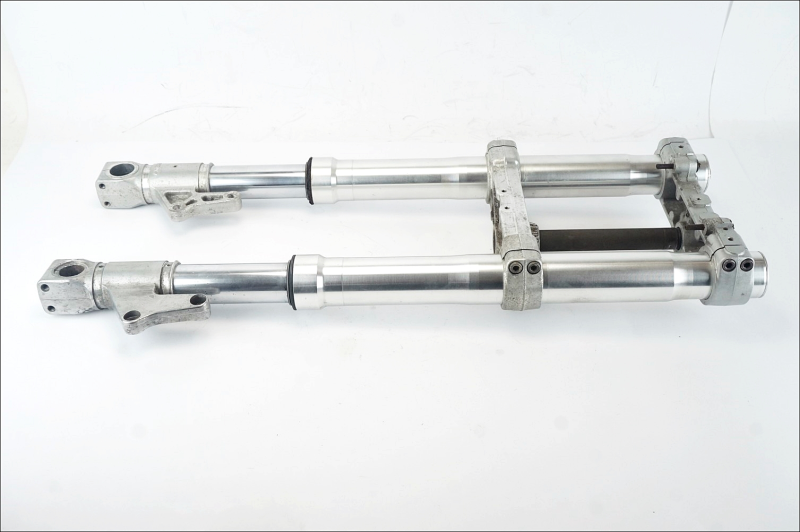

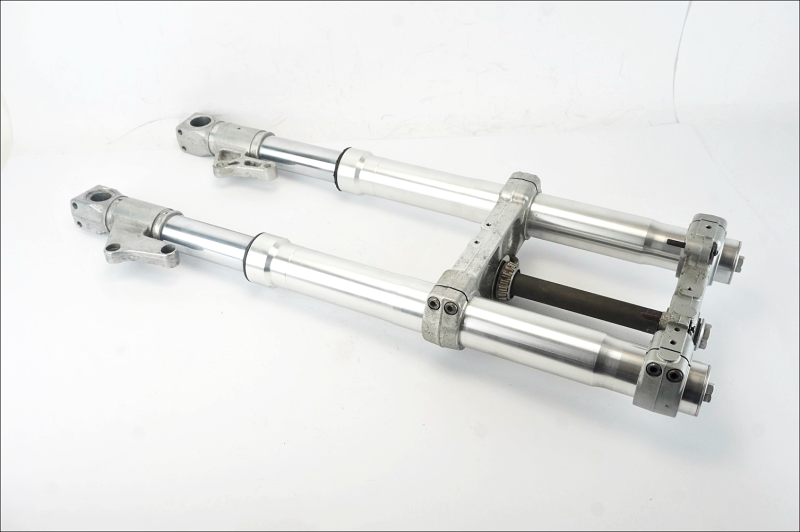

Fork with original plates Ducati Monster 600 Dark 98 01

Vehicle data sheet
________________________________________
• TYPE: Naked
• BRAND: Ducati
• MODEL: Monster 600 Dark
• DISPLACEMENT: 583 cc
• YEAR OF 1ST REGISTRATION: 2000
• APPLICATION: 1998 2001
• FRAME CODE: ZDMM300AAYB0131294
• ENGINE CODE: 600A2C
• KW: 37.5 kW

Product data sheet
________________________________________
• CONDITION: used

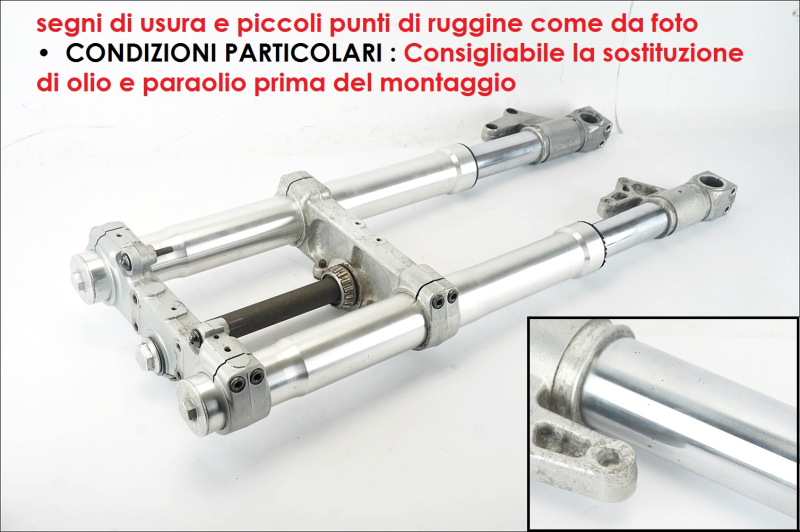

• DEFECTS TO REPORT: signs of wear and small rust spots as shown in the photo
• SPECIAL CONDITIONS: It is advisable to replace the oil and oil seal before assembly
• BRAND: original SHWOA
Material: steel and aluminum

Overall length: 75cm
Diameter of the fixing holes riser: 22mm
Length of the stem: 18.5cm
Diameter of the stem: 26mm
Diameter of the stems: 40mm
Diameter of the fixing holes for the axial attachment calipers: 10mm
Distance between the fixing holes for the axial attachment calipers from center hole to center hole: 4cm
Diameter of the front axle passage hole: 25mm bushing part: 20mm
Right stem code: 757 A 9
Left stem code: 756 A 9

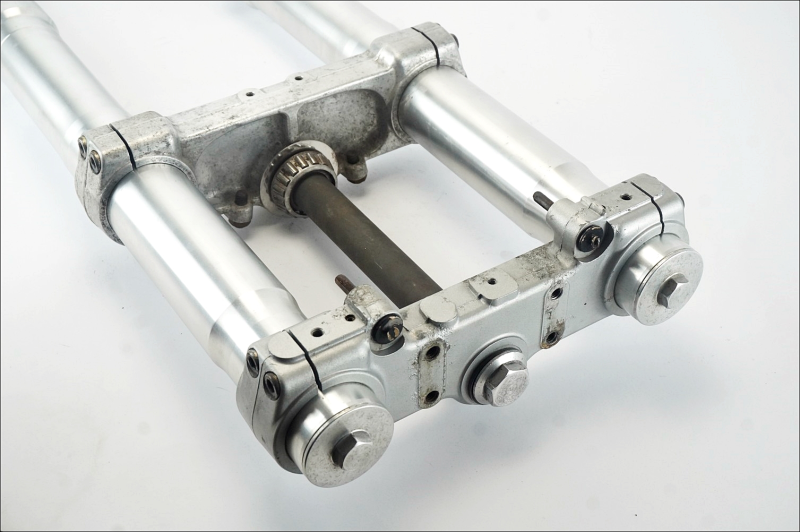

Upper plate code: 341.3 017.1A
Lower plate code: 342.3.014.1A
Product intact and straight but with small rust spots as shown in the photo. It is advisable to replace the oil and oil seal before assembly
________________________________________
N.b.
All codes relating to the item listed are visible in the photos in the ad,
we do not use sample images, what is visible in the photos reflects reality

Fast Shipping

---
