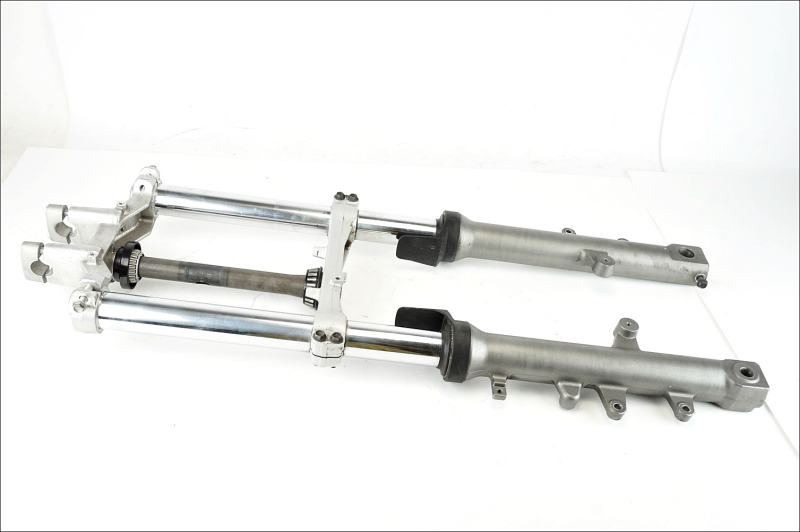

Fork with original plates Suzuki Burgman AN 650 06 12

Vehicle data sheet
________________________________________
• TYPE: High Wheel Scooter
• BRAND: Suzuki
• MODEL: Burgman AN 650
• DISPLACEMENT: 638 cc
• APPLICATION: 2006 2012
• FRAME CODE: JS1BU132100101038
• KM: 37,146 (detected by the instrumentation installed on the vehicle during the disassembly phase)
• KW: 40.5 kW

Product data sheet
________________________________________
• CONDITION: used

• DEFECTS TO REPORT: signs of wear
• SPECIAL CONDITIONS: signs of use, slight discoloration and small rust spots on the upper part
• BRAND: original
• MATERIAL: aluminum and steel
________________________________________
Steering riser diameter: 22mm
Overall length: 76.5cm
Steering tube length: 24.5cm
Central part of the steering tube diameter: 26mm
Stem diameter: 41mm
Diameter of the axial attachment caliper fixing holes: 8mm
Distance between the axial attachment caliper fixing holes from center hole to center hole: 8cm
Diameter of the front axle passage hole: bushed part: 22mm threaded part: 17mm

Right stem code: XA611 USR

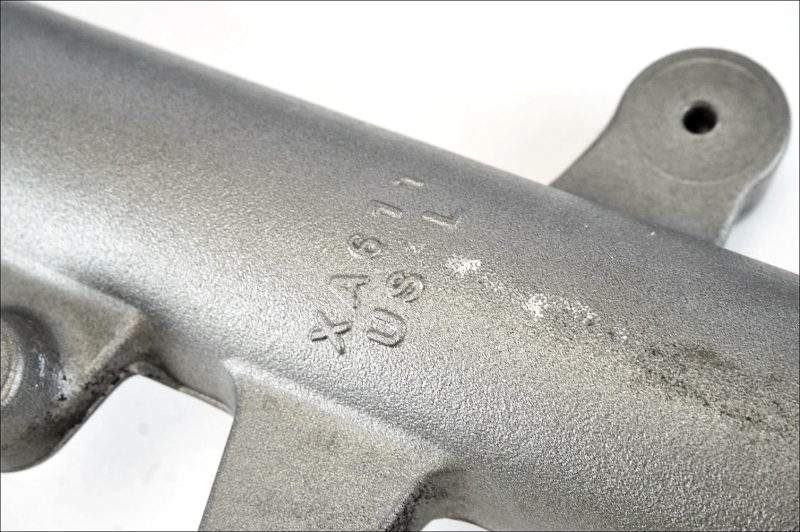

Left stem code: XA611 USL

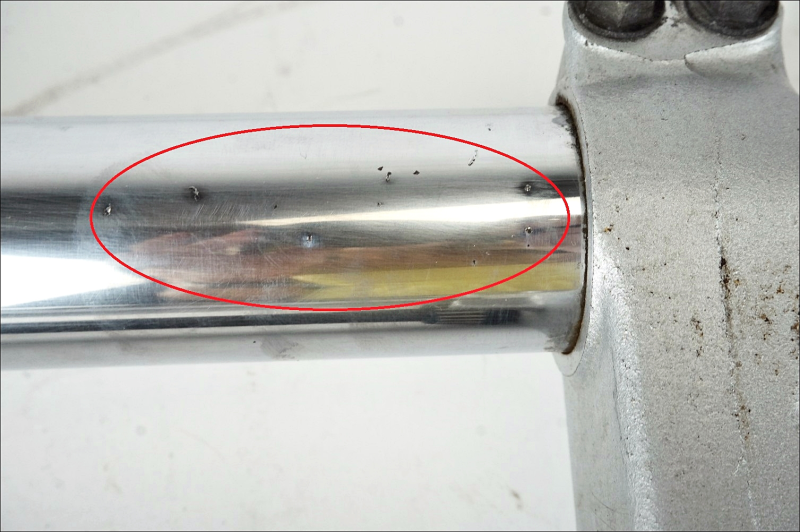

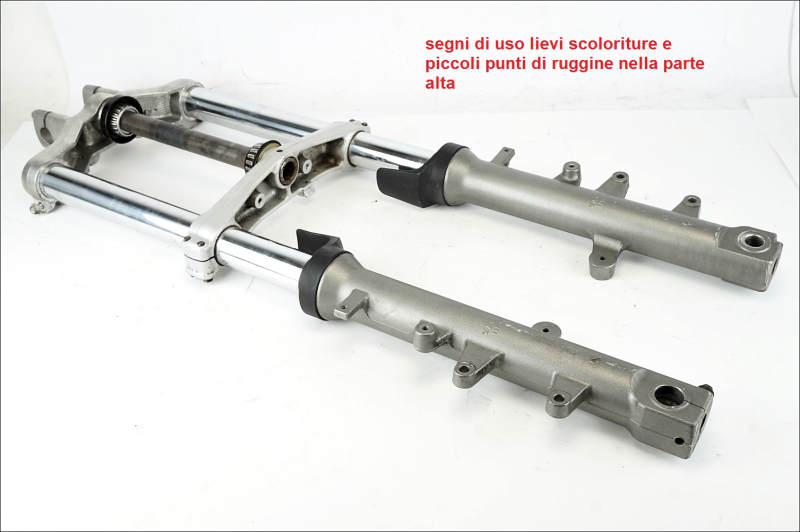

Product with signs of use, slight discoloration and small rust spots on the upper part
________________________________________
N.b.
All the codes relating to the item advertised are visible in the photos in the ad,
we do not use sample images, what is visible in the photo reflects reality
